Hyundai
>>
2012
>>
Azera V6-3.3L
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Powertrain Management
>>
Sensors and Switches - Ignition System
>>
Ignition Switch
>>
Diagrams
>>
Ignition Key ILL. & Door Warning Switch (W/O Smart Key)
Ignition Key ILL. & Door Warning Switch (W/O Smart Key)

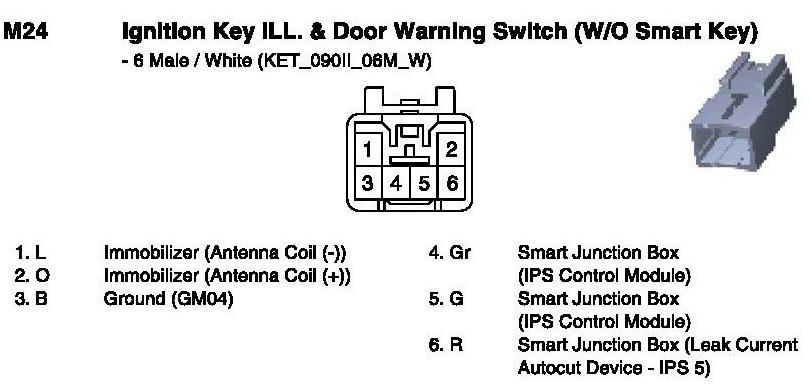

M24 Ignition Key ILL. & Door Warning Switch (W/O Smart Key):
