Home >> Hyundai >> 2012 >> Azera V6-3.3L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Ambient Light Sensor >> Diagrams

Ambient Light Sensor: Diagrams

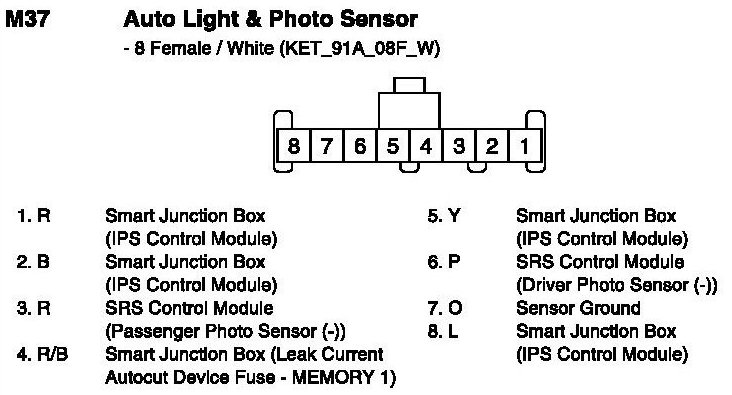

M37 Auto Light & Photo Sensor:
