Home >> Hyundai >> 2012 >> Azera V6-3.3L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Yaw Rate Sensor >> Diagrams

Yaw Rate Sensor: Diagrams

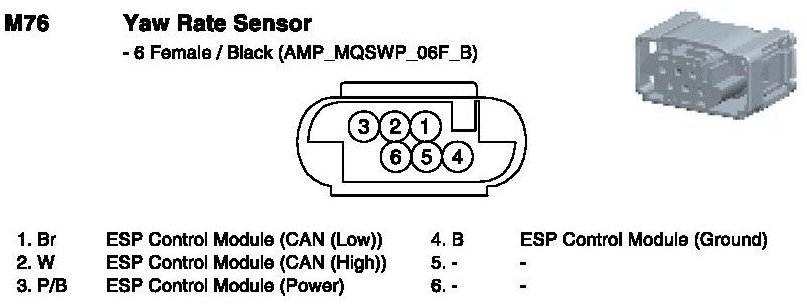

M76 Yaw Rate Sensor:
