Home >> Hyundai >> 2012 >> Azera V6-3.3L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Fuel Door Switch >> Diagrams

Fuel Door Switch: Diagrams

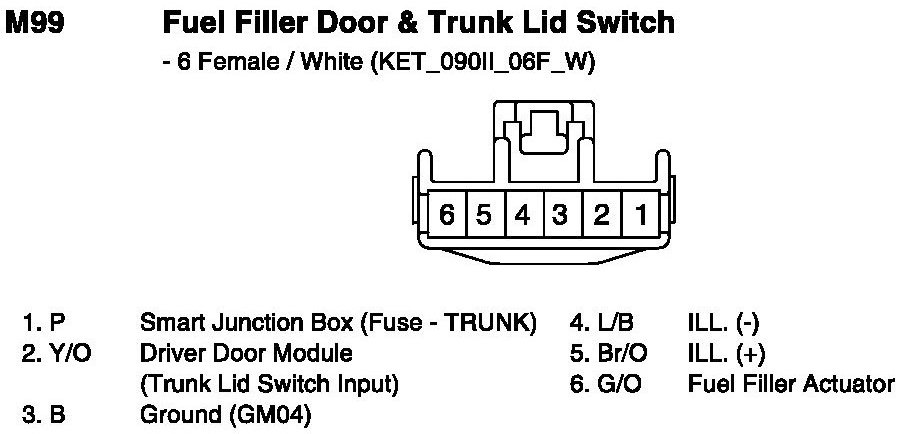

M99 Fuel Filler Door & Trunk Lid Switch:
