Home >> Hyundai >> 2012 >> Azera V6-3.3L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Console Lamp Switch >> Diagrams

Console Lamp Switch: Diagrams

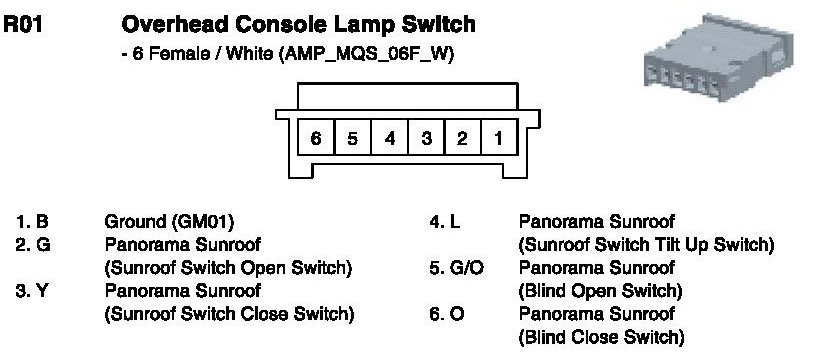

R01 Overhead Console Lamp Switch:
