Home >> Hyundai >> 2012 >> Azera V6-3.3L >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Sensors and Switches - Instrument Panel >> Door Switch >> Diagrams >> Rear Door Switch LH

Rear Door Switch LH

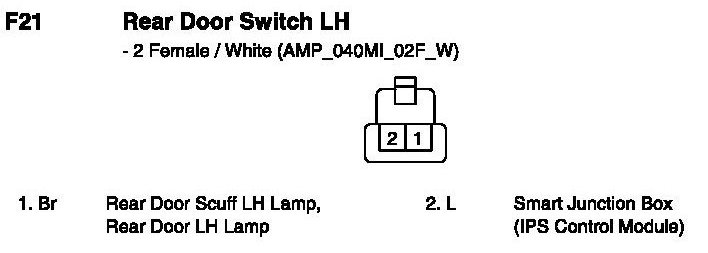

F21 Rear Door Switch LH:

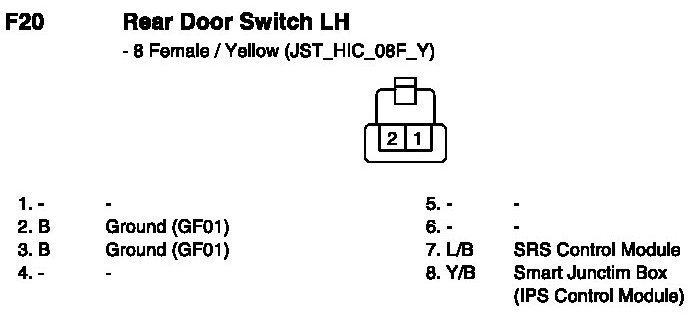

F20 Rear Door Switch LH:
