Repair Procedures
Removal and Installation
1. Remove the drive belt.

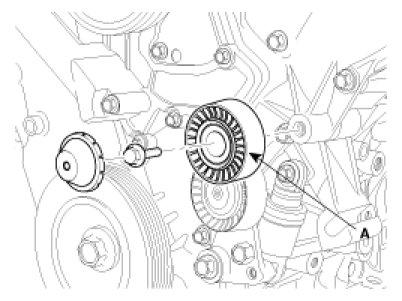

2. Remove the drive belt idler (A).
Tightening torque :
52.9 - 57.9N.m (5.4 - 5.9kgf.m, 39.1 - 42.7lb-ft)
3. Installation is reverse order of removal
Removal and Installation
1. Remove the drive belt.
2. Remove the drive belt idler (A).
Tightening torque :
52.9 - 57.9N.m (5.4 - 5.9kgf.m, 39.1 - 42.7lb-ft)
3. Installation is reverse order of removal
