Repair procedures

Removal and Installation

1. Remove the drive belt idler.

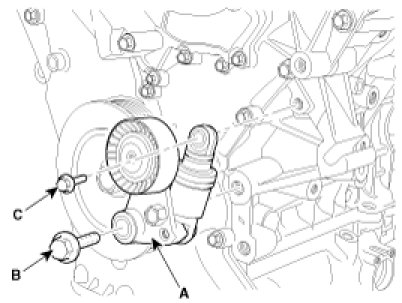

2. Remove the drive belt auto tensioner (A).

Tightening torque
Bolt (B) :
81.4 - 85.3N.m (8.3 - 8.7kgf.m, 60.0 - 62.9lb-ft)
Bolt (C) :
17.7 - 21.6N.m (1.8 - 2.2kgf.m, 13.0 - 15.9lb-ft)




3. Installation is reverse order of removal
