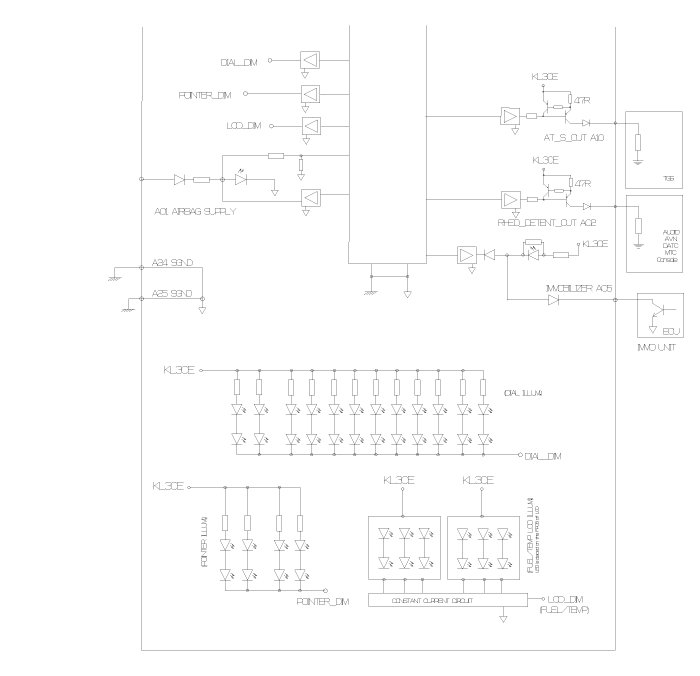

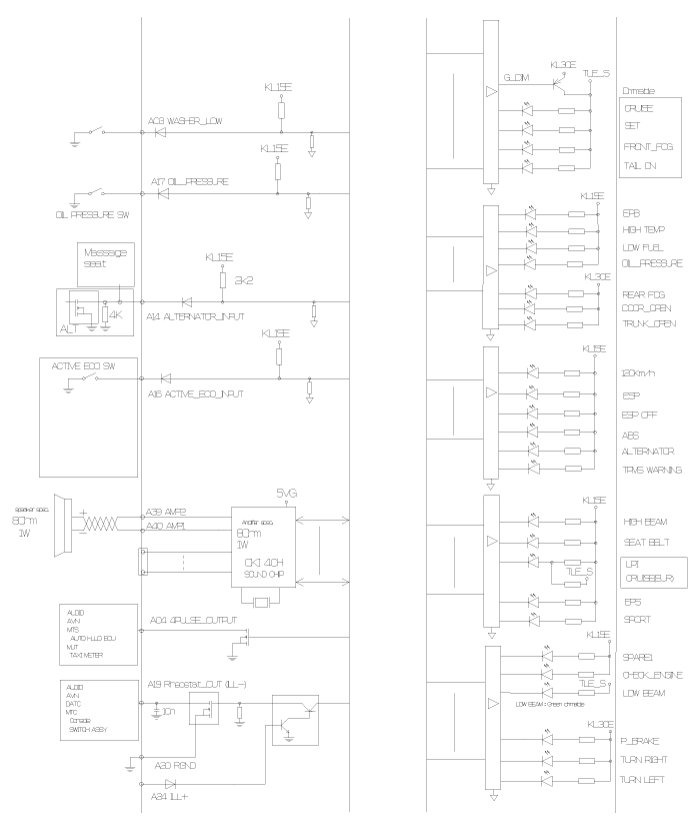

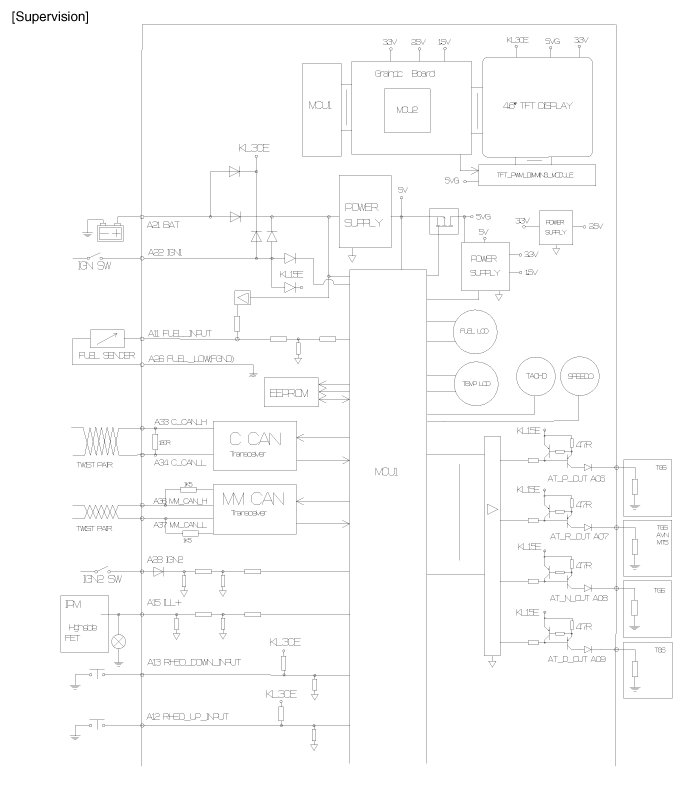

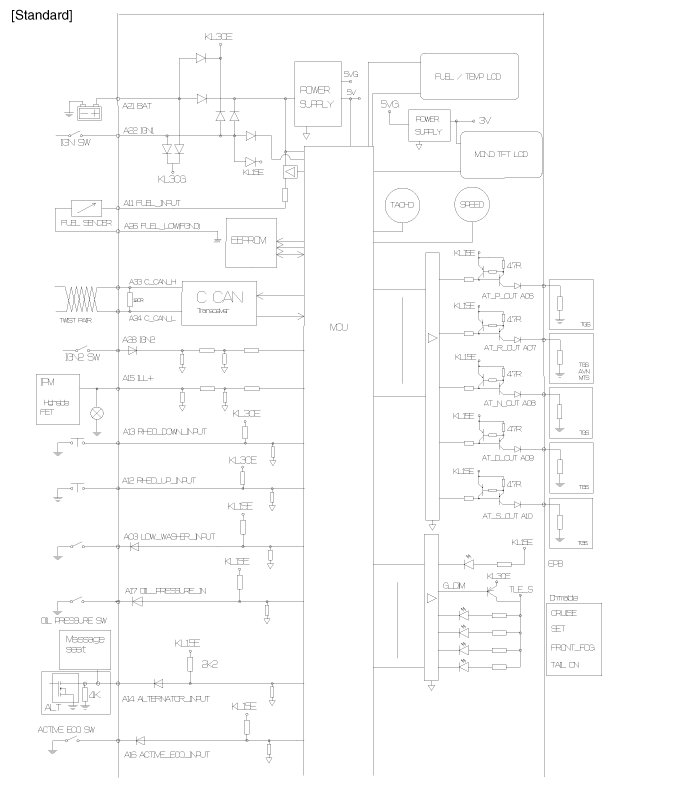

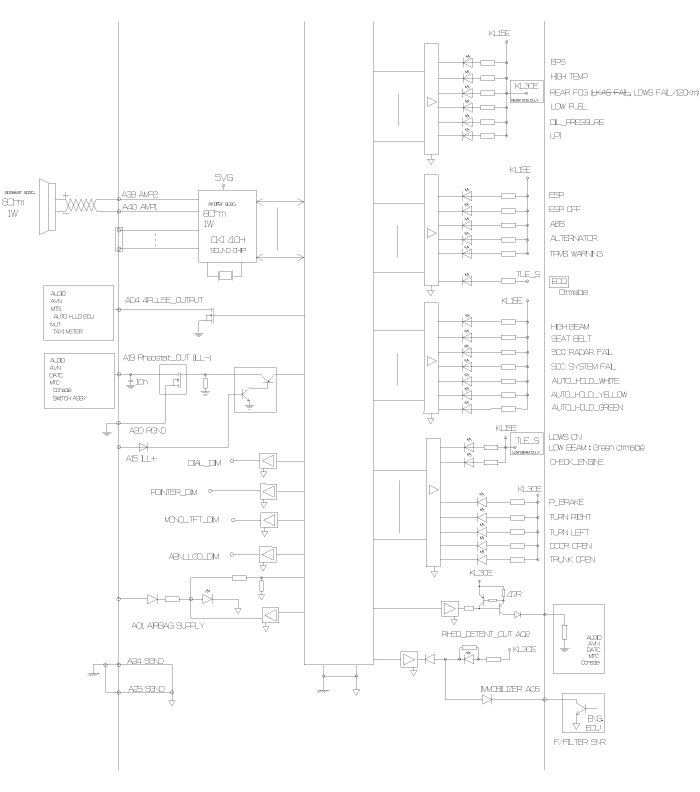

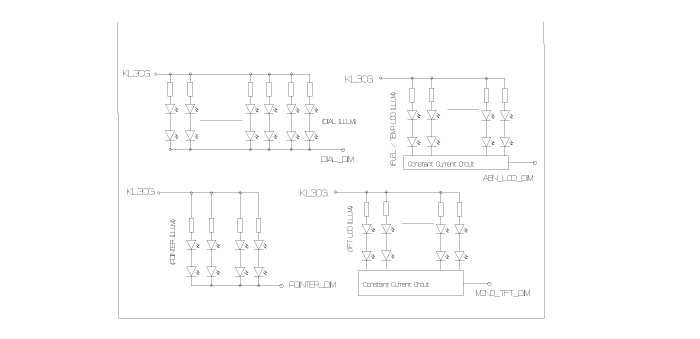

Home >> Hyundai >> 2012 >> Azera V6-3.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Circuit Diagram
