Circuit Diagram

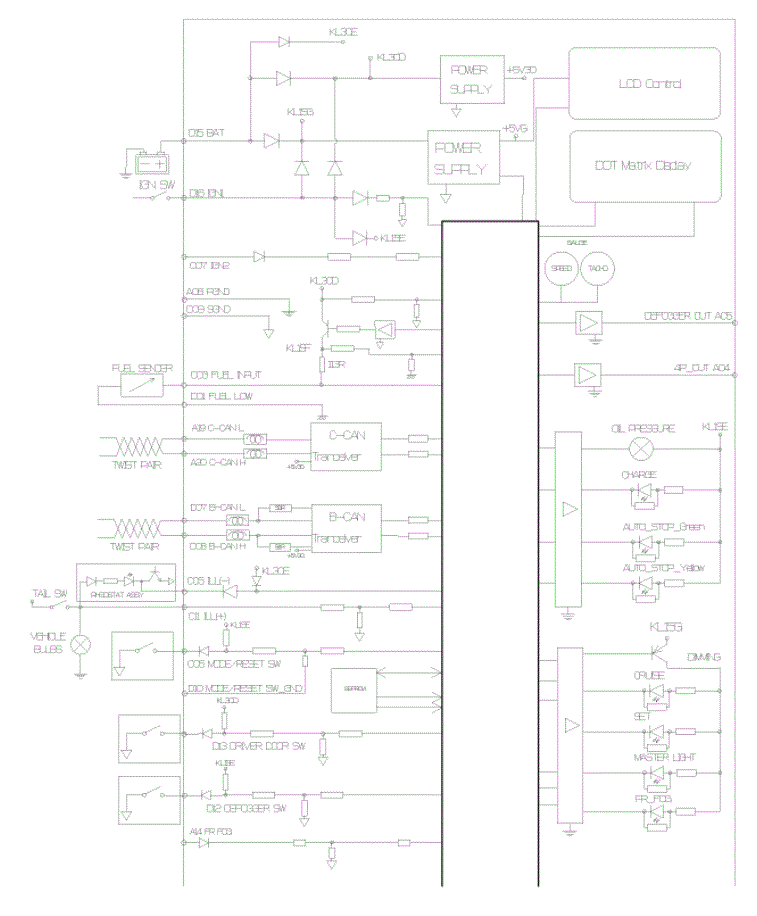

Fig 1: Instrument Cluster - Circuit Diagram (1 Of 3)
G08803362Courtesy of HYUNDAI MOTOR AMERICA

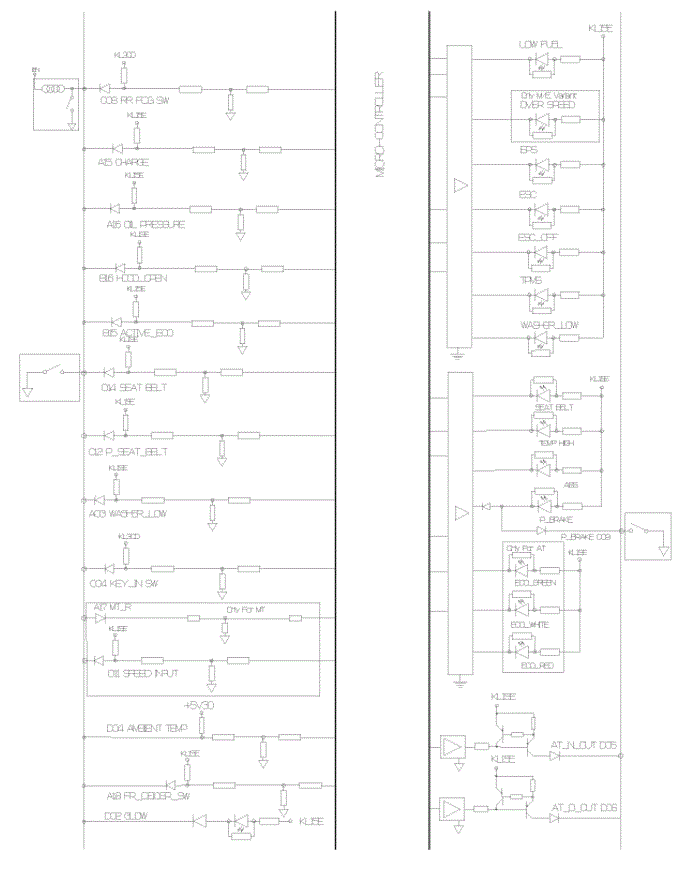

Fig 2: Instrument Cluster - Circuit Diagram (2 Of 3)
G08803363Courtesy of HYUNDAI MOTOR AMERICA

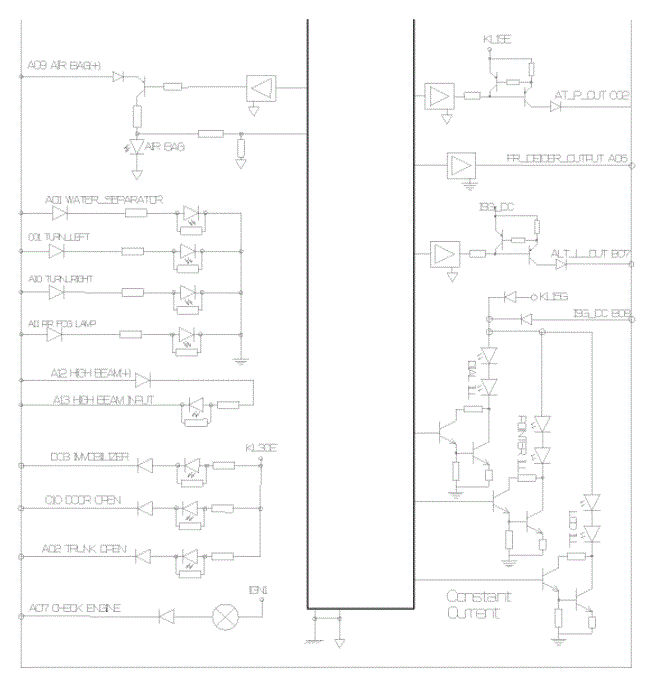

Fig 3: Instrument Cluster - Circuit Diagram (3 Of 3)
G08803364Courtesy of HYUNDAI MOTOR AMERICA
