Repair procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the cluster fascia panel (A) after disconnecting the trip switch connector (B).

Fig 1: Identifying Cluster Fascia Panel
Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Identifying Trip Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the cluster fascia (A) from the crash pad after removing 4 screws.

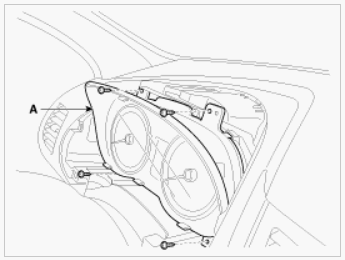

Fig 3: Identifying Cluster Fascia With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the cluster fascia connectors (A) and then remove the cluster.

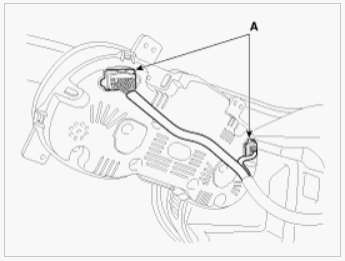

Fig 4: Identifying Cluster Fascia Connectors
Courtesy of HYUNDAI MOTOR AMERICA
