Home >> Hyundai >> 2011 >> Sonata GLS, Automatic >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Rear Suspension System - Except HEV >> Components And Components Location >> Components

Components And Components Location: Components

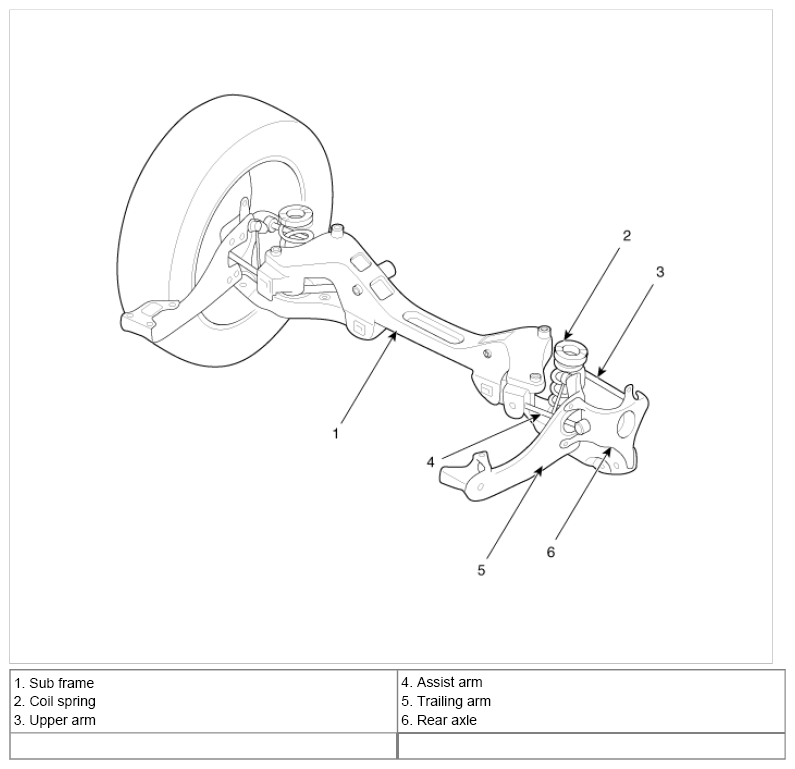

Fig 1: Identifying Rear Suspension System Components Location

G07359020

Courtesy of HYUNDAI MOTOR CO.
