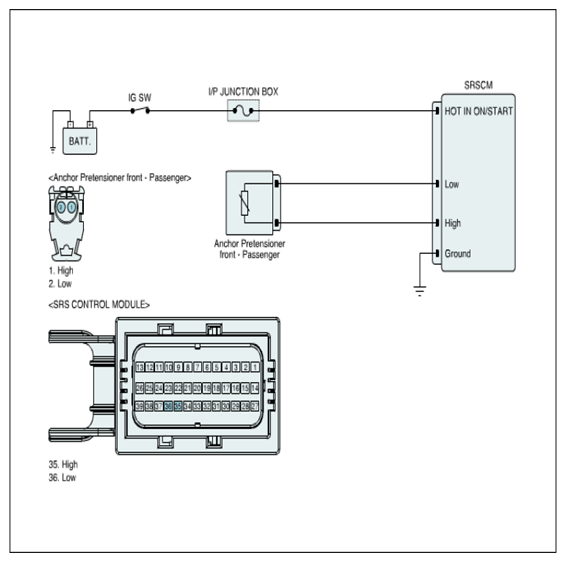

Home >> Hyundai >> 2011 >> Sonata GLS, Automatic >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag Diagnosis (Event #2) - Except HEV >> DTC B1734: Anchor Pretensioner front-Passenger resistance too High >> General Information >> Diagnostic Circuit Diagram
