Main harness Circuit Inspection

Ignition "OFF".
Disconnect the battery (-) terminal cable from the battery and wait at least one minutes.
Disconnect Anchor Pretensioner front-Driver connector and SRSCM main harness connector.
Measure resistance between terminal "Low" and "High" of the Anchor Pretensioner front-Driver harness connector.
Specification : approx. 1 Ω below

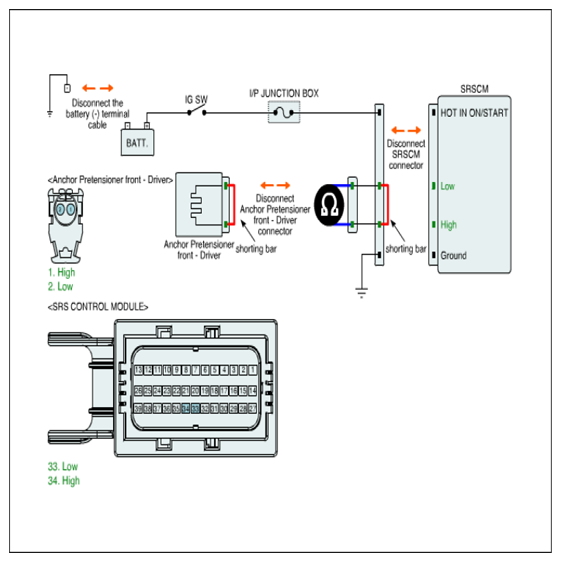

Fig 1: Measuring Resistance Between Terminal Low And High Of Anchor Pretensioner Front-Driver Harness Connector
Courtesy of HYUNDAI MOTOR AMERICA
Is the measured resistance within specifications?
YES
- Substitute a known-good SRSCM, and check for proper operation.
  If the problem is corrected, replace SRSCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute the SRSCM main harness and check for proper operation.
  If the problem is corrected, replace SRSCM main harness and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
