Main harness Circuit Inspection

Ignition "OFF".
Disconnect the battery (-) terminal cable from the battery, and wait at least one minutes.
Disconnect Seat-belt Buckle Switch connector and SRSCM main harness connector.
Measure resistance between of the Buckle Switch Passenger wiring connector and SRSCM harness connector.
Specification : approx. 1 Ω below

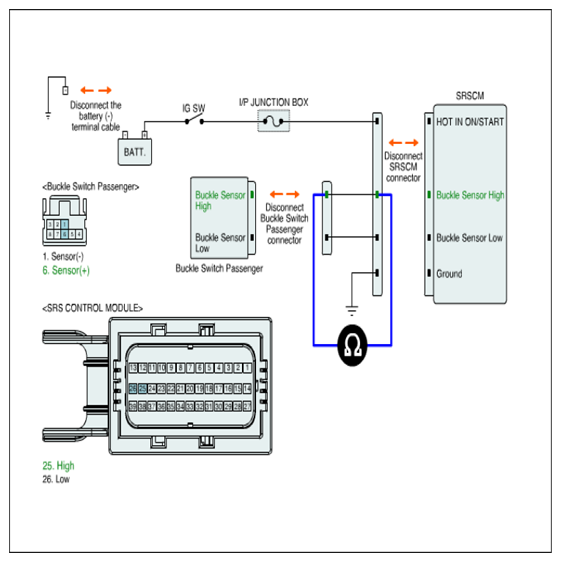

Fig 1: Measuring Resistance Between Of Buckle Switch Passenger Wiring Connector And SRSCM Harness Connector
Courtesy of HYUNDAI MOTOR AMERICA
Is the measured resistance within specifications?
YES
- Go to "MAIN HARNESS CIRCUIT INSPECTION " procedure.
NO
- Substitute the SRSCM main harness and check for proper operation.
  If the problem is corrected, replace SRSCM main harness and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

Ignition "OFF".
Disconnect the battery (-) terminal cable from the battery, and wait at least one minutes.
Disconnect Seat-belt Buckle Switch connector and SRSCM main harness connector.
Connect the battery (-) terminal cable to the battery and Ignition "ON" & Engine "OFF".
Measure voltage between terminal "High" of the Seat-belt Buckle Switch harness connector and chassis ground.
Specification : 0V

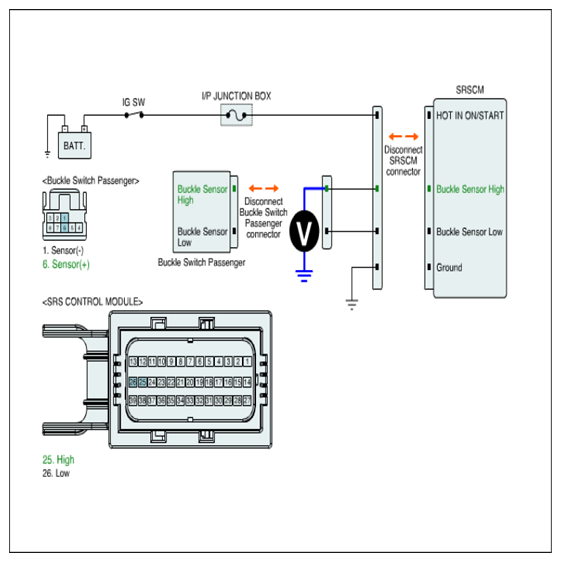

Fig 1: Measuring Voltage Between Terminal High Of Seat-Belt Buckle Switch Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR AMERICA
Is the measured resistance within specifications?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Substitute the SRSCM main harness and check for proper operation.
  If the problem is corrected, replace SRSCM main harness and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
