Main harness Circuit Inspection

  1. Ignition "OFF".
  2. Disconnect the battery (-) terminal cable from the battery and wait at least one minutes.
  3. Disconnect Seat-belt Buckle Switch connector and SRSCM main harness connector.
  4. Measure resistance between terminal "High" of the Seat-belt Buckle Switch harness connector and chassis ground.

    Specification  : ∞

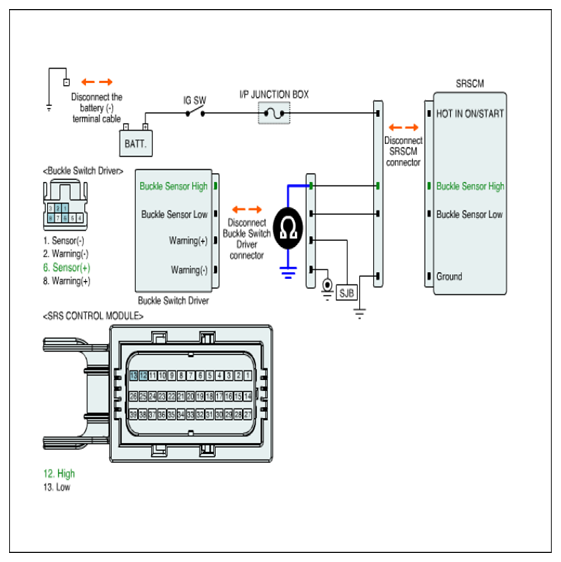

    Fig 1: Measuring Resistance Between Terminal High Of Seat-Belt Buckle Switch Harness Connector And Chassis Ground
    G07367171Courtesy of HYUNDAI MOTOR AMERICA
  5. Is the measured resistance within specifications?

    YES

    NO

    • Substitute the SRSCM main harness and check for proper operation.

      If the problem is corrected, replace SRSCM main harness and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
