Main harness Circuit Inspection (1)

  1. Ignition "OFF".
  2. Disconnect the battery (-) terminal cable from the battery, and wait at least one minutes.
  3. Disconnect Seat-belt Buckle Switch connector and SRSCM main harness connector.
  4. Measure resistance between of the Buckle Switch Driver wiring connector and SRSCM harness connector.

    Specification  : approx. 1 Ω below

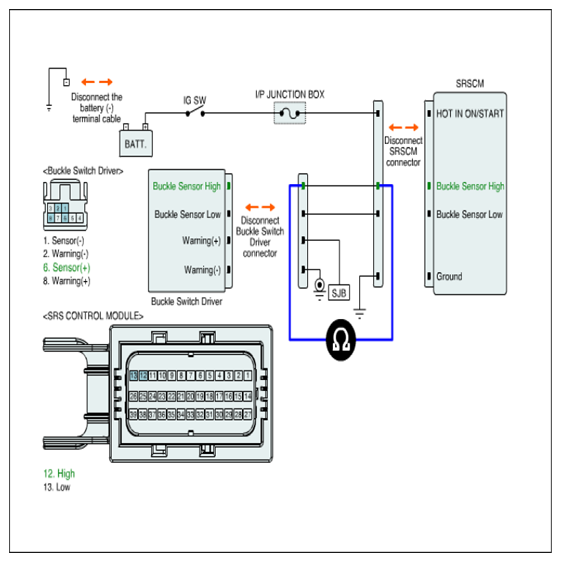

    Fig 1: Measuring Resistance Between Of Buckle Switch Driver Wiring Connector And Srscm Harness Connector
    G07367166Courtesy of HYUNDAI MOTOR AMERICA
  5. Is the measured resistance within specifications?

    YES

    NO

    • Substitute the SRSCM main harness and check for proper operation.

      If the problem is corrected, replace SRSCM main harness and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
