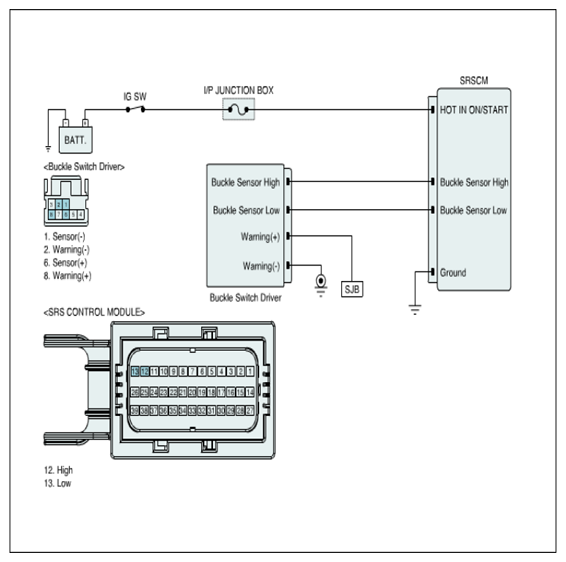

Home >> Hyundai >> 2011 >> Sonata GLS, Automatic >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag Diagnosis (Event #2) - Except HEV >> DTC B1511: Buckle Switch Driver open or short to Battery >> General Information >> Diagnostic Circuit Diagram
