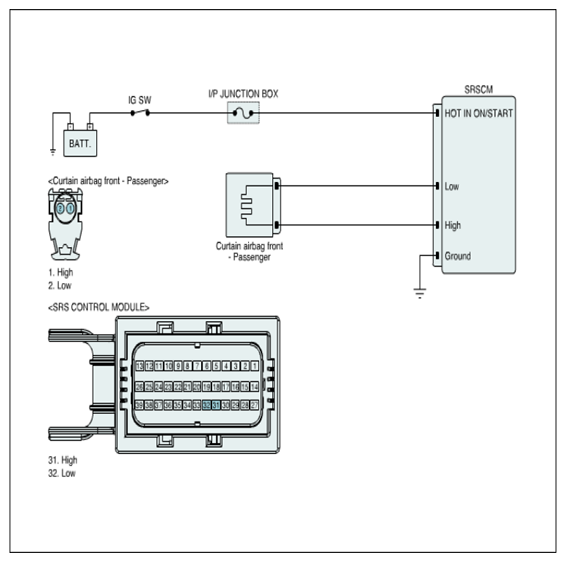

Home >> Hyundai >> 2011 >> Sonata GLS, Automatic >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag Diagnosis (Event #2) - Except HEV >> DTC B1478: Inflatable Curtain Airbag Front-Passenger Resistance too Low >> General Information >> Diagnostic Circuit Diagram
