Component Location

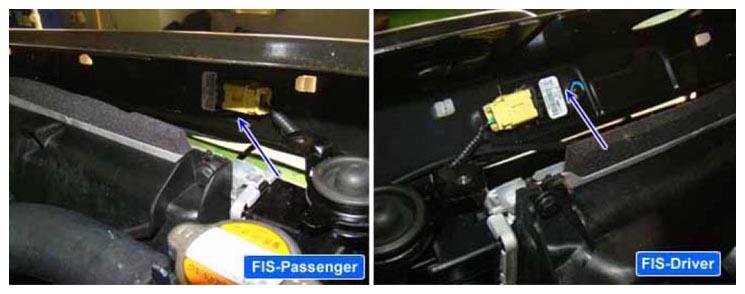

Fig 1: Identifying Front Impact Sensor - Driver And Passsenger Side Location
G07366893Courtesy of HYUNDAI MOTOR AMERICA
