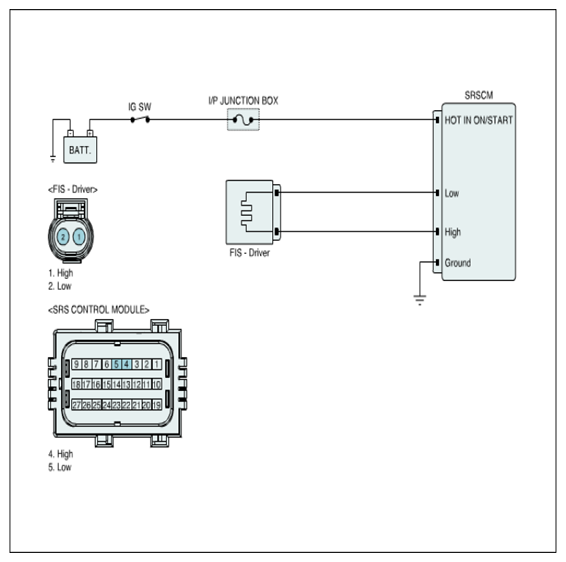

Home >> Hyundai >> 2011 >> Sonata GLS, Automatic >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag Diagnosis (Event #2) - Except HEV >> DTC B1328: FIS (Front Impact Sensor)-Driver Defect >> General Information >> Diagnostic Circuit Diagram
