Main harness Circuit Inspection

Ignition "OFF".
Disconnect the battery (-) terminal cable from the battery, and wait at least one minutes.
Disconnect Pressure-Side Impact connector and SRSCM main harness connector.
Measure resistance between terminal "Low" or "High" of the Pressure-Side Impact harness connector and chassis ground.
Specification : ∞

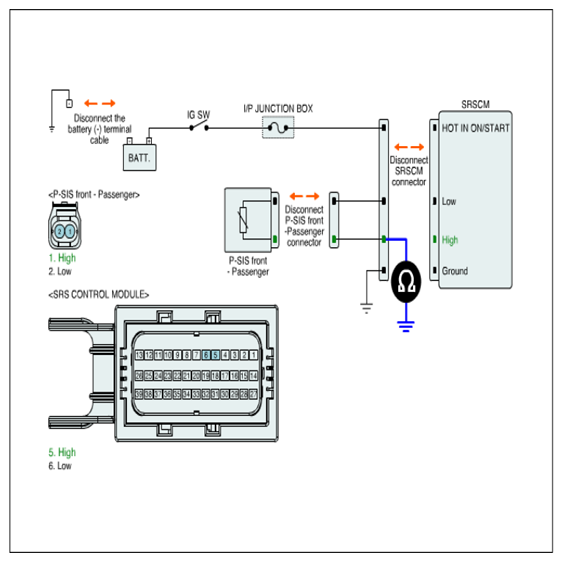

Fig 1: Measuring Resistance Between Terminal Low Or High Of Pressure-Side Impact Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is the measured resistance within specifications?
YES
- Go to "COMPONENT INSPECTION " procedure.
NO
- Substitute the SRSCM main harness and check for proper operation.
  If the problem is corrected, replace SRSCM main harness and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
