Monitor Scantool Data

  1. Ignition "OFF", connect scantool.
  2. Ignition "ON" & Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
  3. Monitor diagnostic trouble code and present of trouble code.
  4. Using a scan tool, clear the DTC.

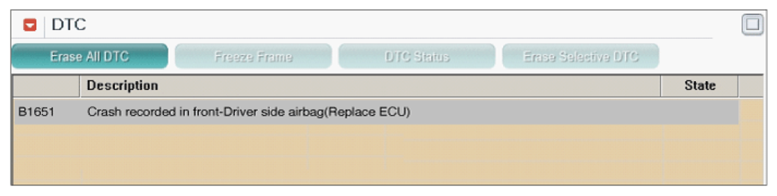

    Fig 1: Scantool Display - Crash Record In Front-Driver Side Airbag (Frontal-Replace ECU)
    G07366684Courtesy of HYUNDAI MOTOR CO.
  5. Is DTC present problem?

    YES

    • DTC caused by deployment of front driver SAB and driver CAB. Substitute with a SRSCM and check for proper operation.

      If the problem is corrected, replace SRSCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
