Monitor Scantool Data

  1. Ignition "OFF", connect scantool.
  2. Ignition "ON" & Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
  3. Monitor diagnostic trouble code and present of trouble code.
  4. Using a scan tool, clear the DTC.

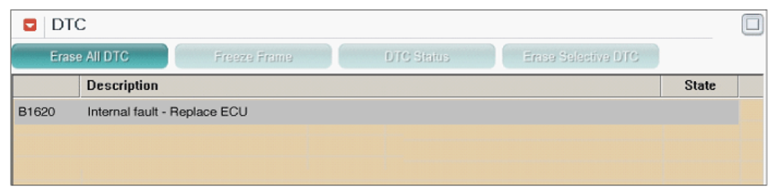

    Fig 1: Scantool Display - Internal Fault-Replace ECU
    G07366680Courtesy of HYUNDAI MOTOR CO.
  5. Is DTC present problem?

    YES

    • Internal fault of SRSCM. Substitute with a SRSCM and check for proper operation.

      If the problem is corrected, replace SRSCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
