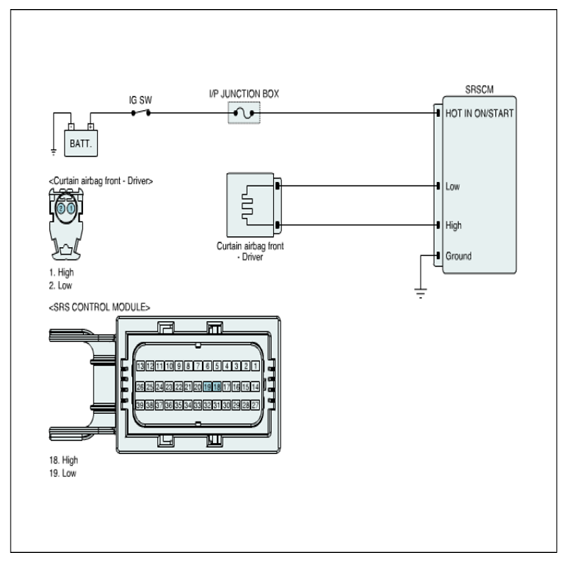

Home >> Hyundai >> 2011 >> Sonata GLS, Automatic >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag Diagnosis (Event #1) - Except HEV >> DTC B1475: Inflatable Curtain Air bag Front - Driver Resistance Circuit Short to Ground >> General Information >> Diagnostic Circuit Diagram
