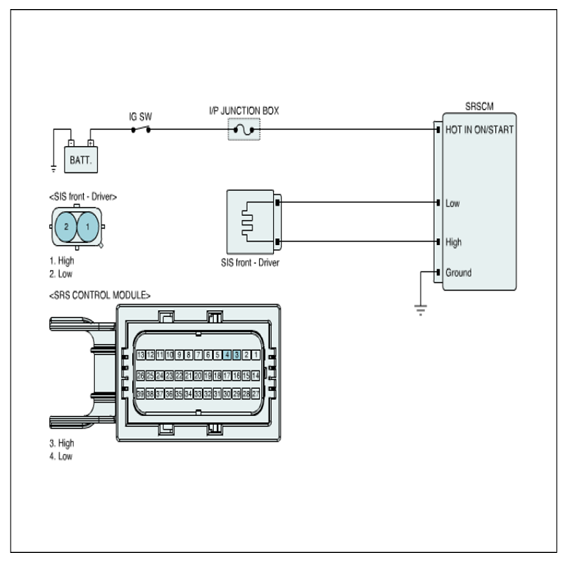

Home >> Hyundai >> 2011 >> Sonata GLS, Automatic >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag Diagnosis (Event #1) - Except HEV >> DTC B1409: SIS (Side Impact Sensor) Front-Driver Communication Error >> General Information >> Diagnostic Circuit Diagram
