Component Location

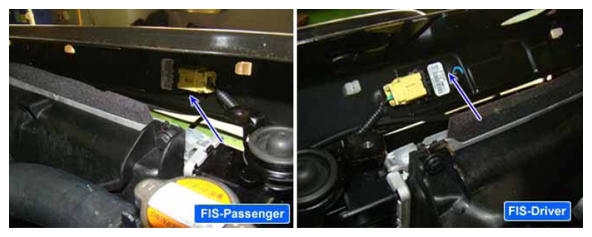

Fig 1: Identifying Front Impact Sensor - Driver And Passenger Side Location
G07366389Courtesy of HYUNDAI MOTOR CO.
