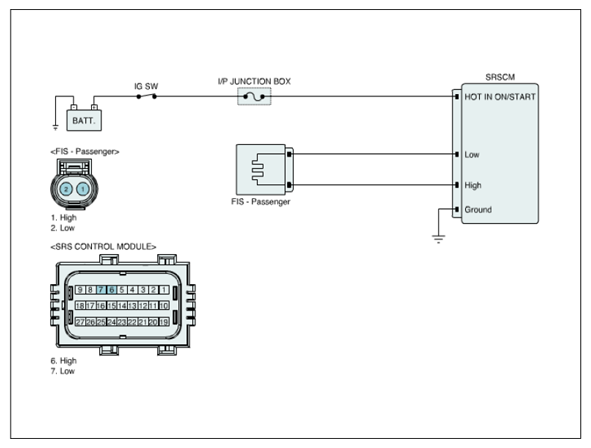

Home >> Hyundai >> 2011 >> Sonata GLS, Automatic >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag Diagnosis (Event #1) - Except HEV >> DTC B1331: FIS (Front Impact Sensor)-Passenger Short to Ground >> General Information >> Diagnostic Circuit Diagram
