Communication K LINE Inspection

  1. Connect SRSCM and Weight Classification System connector.
  2. IG KEY ON.
  3. Measure signal waveform between C-CAN HIGH terminal and C-CAN LOW terminal of SRSCM connector.

    Specification:  Refer to Signal waveform and Data

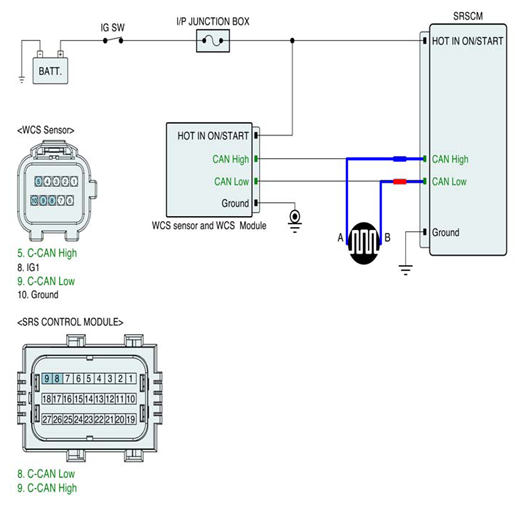

    4. Fig 1: Measuring Signal Waveform Between C-CAN High Terminal And C-CAN Low Terminal Of Srscm Connector
    G07313845
  4. Is the measured resistance within specifications?

    YES

    NO

    • Substitute the SRSCM main harness or WCS Module or SRSCM and check for proper operation. If the problem is corrected, replace SRSCM main harness WCS Module or SRSCM and then go to "VERIFICATION OF VEHICLE REPAIR " procedure and Go to "WCS RESET " procedure.
