Main To Roof Harness Connection Connector End View (MR01)

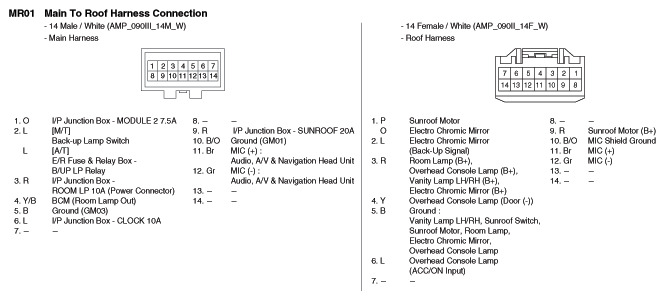

Fig 1: Main To Roof Harness Connection Connector End View (MR01)

G10770693

Courtesy of HYUNDAI MOTOR AMERICA
