Main To Console Ext. Harness Connection Connector End View (MM01)

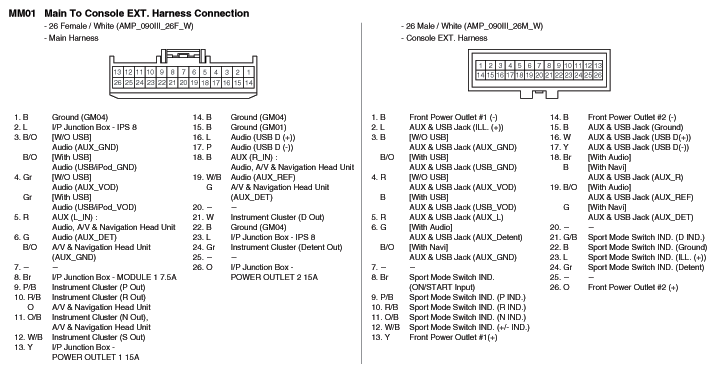

Fig 1: Main To Console Ext. Harness Connection Connector End View (MM01)

G10770692

Courtesy of HYUNDAI MOTOR AMERICA
