Front To Main Harness Connection Connector End View (EM11)

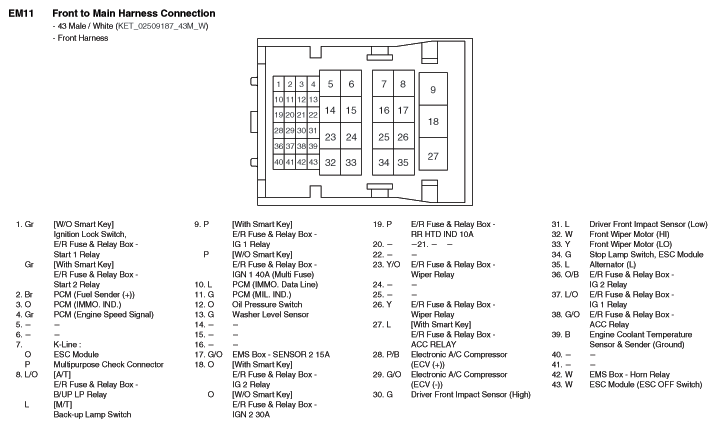

Fig 1: Front To Main Harness Connection Connector End View (EM11)
G10770675Courtesy of HYUNDAI MOTOR AMERICA

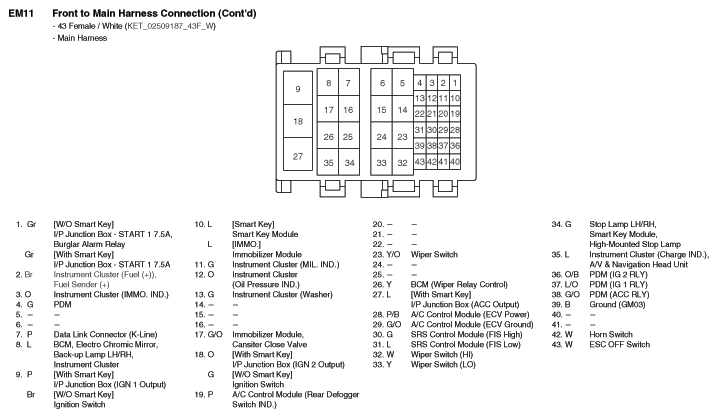

Fig 1: Front To Main Harness Connection Connector End View (EM11)
G10770676Courtesy of HYUNDAI MOTOR AMERICA
