Front To Control Harness Connection Connector End View (EC11)

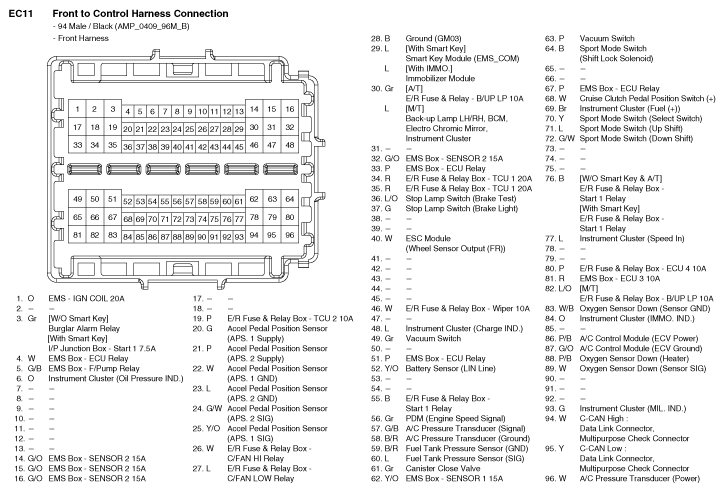

Fig 1: Front To Control Harness Connection Connector End View (EC11)
G10770669Courtesy of HYUNDAI MOTOR AMERICA

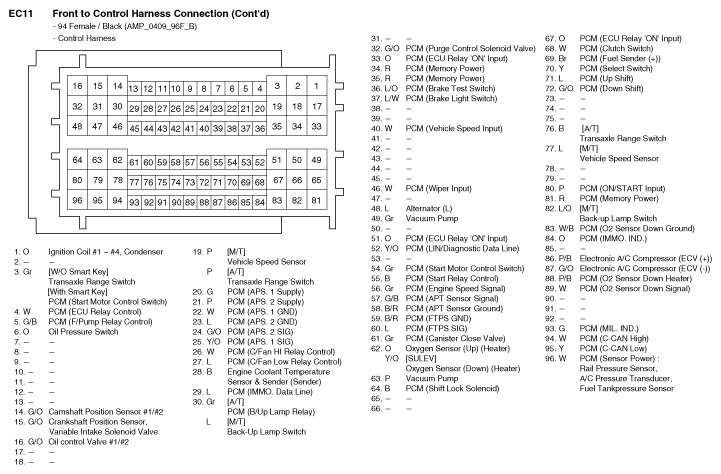

Fig 1: Front To Control Harness Connection Connector End View (EC11)
G10770670Courtesy of HYUNDAI MOTOR AMERICA
