SRS Control Module Connector End View (F15-B)

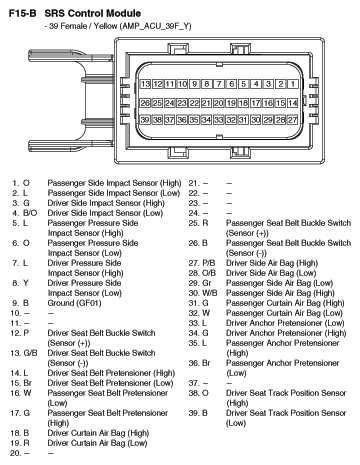

Fig 1: SRS Control Module Connector End View (F15-B)

G10770578

Courtesy of HYUNDAI MOTOR AMERICA
