Repair Procedures: Inspection

  1. Remove the trunk room left side trim.

    (Refer to the "INTERIOR TRIM ")

  2. Open the fuel filler door and remove the housing (A).
    NOTE: Do not reuse the fuel filler door housing.

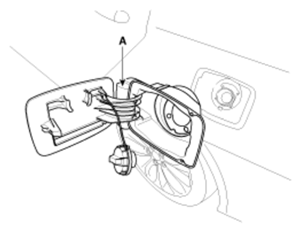

    Fig 1: Identifying Fuel Filler Door Housing
    G07359994Courtesy of HYUNDAI MOTOR CO.
  3. Remove the fuel filler door release actuator (A) after loosening the mounting bolts.
    Fig 2: Identifying Fuel Filler Door Release Actuator With Mounting Bolts
    G07359995Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the release actuator connector (A).
    Fig 3: Identifying Release Actuator Connector
    G07359996Courtesy of HYUNDAI MOTOR CO.
  5. Check for continuity between terminal No. 1 and No. 2.

    If there is no continuity, replace the fuel filler door opener.

    Fig 4: Identifying Fuel Filler Door Opener Connector Terminals
    G07359997Courtesy of HYUNDAI MOTOR CO.
