Repair Procedures: Inspection

  1. Remove the switch assembly (A) from the crash pad lower panel.
    Fig 1: Identifying Crash Pad Lower Panel Switch Assembly
    G07359998Courtesy of HYUNDAI MOTOR CO.
  2. Disconnect the switch connector.
  3. Check for continuity between the terminal No. 3 and No. 4.

    If there is no continuity, replace the fuel filler door open switch.

    (1. Trunk B+, 2. Trunk solenoid, 3. Fuel filler B+

  4. Fuel filler door open solenoid)

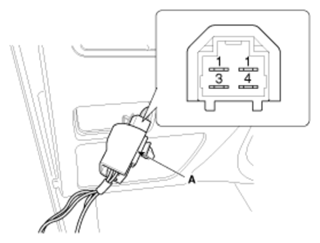

    Fig 2: Identifying Fuel Filler Door Open Switch Connector Terminals
    G07359999Courtesy of HYUNDAI MOTOR CO.
