Repair Procedures: Adjustment

  1. After loosening the trunk lid hinge (A) mounting bolt, adjust the trunk lid by moving it up or down, or right or left.
  2. Adjust the trunk lid height by turning the trunk lid over slam bumpers (B).
  3. After loosening the trunk lid latch (C) mounting bolts, adjust the trunk lid latch by moving it up or down, or right or left.

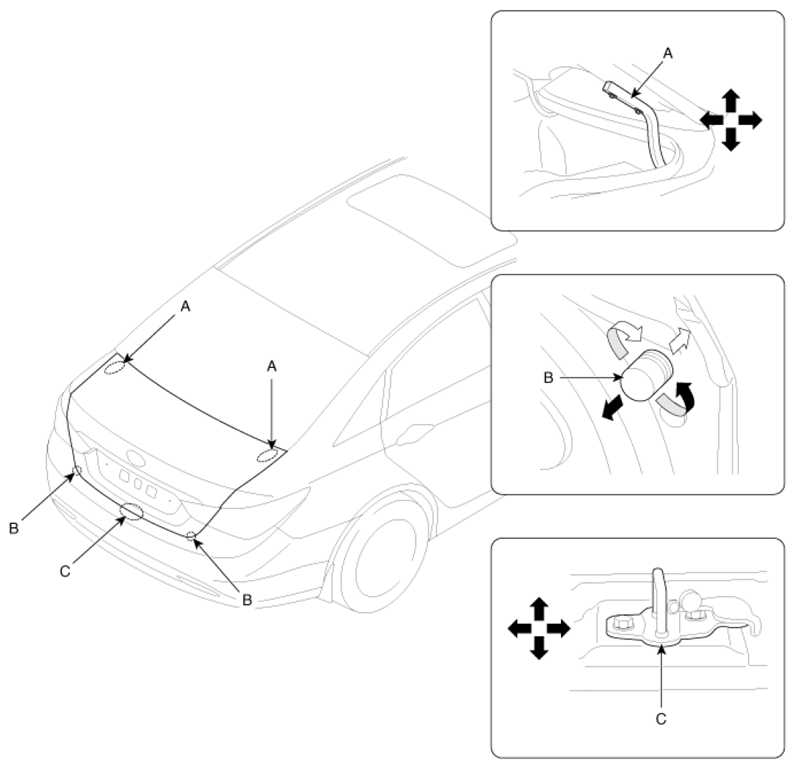

    Fig 1: Turning Trunk Lid Over slam Bumpers Using Trunk Lid Hinge
    G07359443Courtesy of HYUNDAI MOTOR CO.
