Sunshade And Drip Rail Replacement

  1. Remove the sunroof assembly.
  2. Remove the drip link (A) and sunshade stopper (B).
  3. Remove the sunshade (C) and drip rail (D).

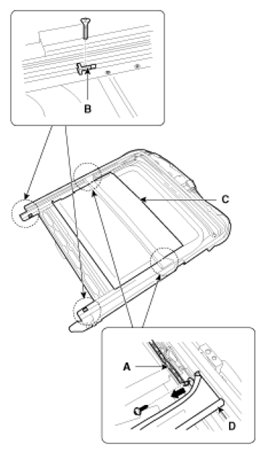

    Fig 1: Identifying Drip Link, Sunshade Stopper, Sunshade And Drip Rail
    G07359500Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
