Sunroof Assembly Replacement

  1. Remove the follows parts.
    1. Front and door scuff trim.
    2. Front, center and rear pillar trim.
    3. Headlining.
    4. Sunroof glass.
  2. Disconnect the drain tubes (A).
  3. After loosening the mounding bolts and nuts, remove the sunroof assembly (B).
    NOTE:
    • Take care not to scratch the interior trims and other parts.
  4. Installation is the reverse of removal.

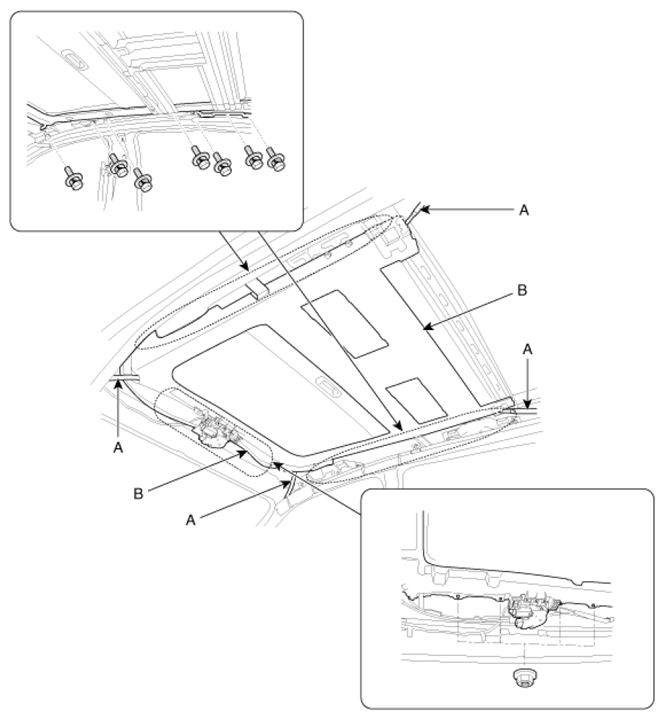

    Fig 1: Identifying Sunroof Assembly And Drain Tubes
    G07359499Courtesy of HYUNDAI MOTOR CO.
