Guide Assembly Replacement

  1. Remove the sunroof assembly.
  2. Remove a guide assembly (A) after lowering a guide thoroughly by pushing a slide to rear.

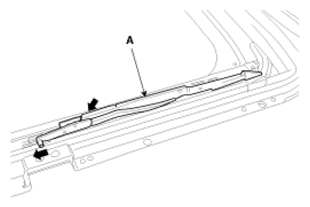

    Fig 1: Identifying Guide Assembly Removal Directions
    G07359501Courtesy of HYUNDAI MOTOR CO.
  3. Remove the guide (A) and slide (B).

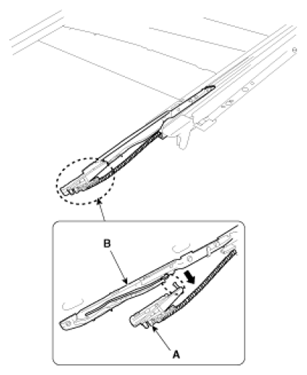

    Fig 2: Removing Guide And Slide
    G07359502Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure to align the slide with the center of "A" and "B"
    • Make sure to initialize the motor.
