Deflector Replacement

  1. Open the glass fully.
  2. Disconnect the deflector link (A) from the frame (B), and then remove the deflector (C).

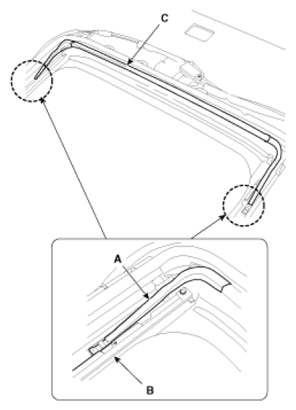

    Fig 1: Identifying Deflector Link, Frame And Deflector
    G07359498Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
