Module Assembly Replacement

Remove the following parts:
1. Door trim
2. Window glass
3. Outside handle
4. Rear channel
Loosen the mounting screw (A).

Fig 1: Identifying Module Assembly Mounting Screw
Courtesy of HYUNDAI MOTOR CO.

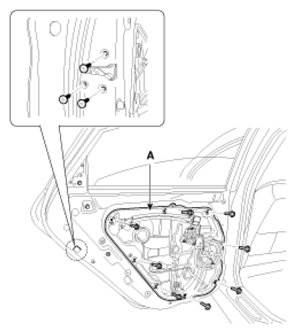

After loosening the door module mounting bolts, remove the door module (A).
Tightening torque:

6.9 ~ 10.8 N.m (0.7 ~ 1.1 kgf.m, 5.1 ~ 8.0 lb-ft)

Fig 2: Identifying Door Module
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A).
Detach the clips, then remove the wiring harness (B).

Fig 3: Identifying Door Module Connector And Wiring Harness
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- The area of whole parts should be applied with sufficient grease.
- Make sure connectors are connected properly and each rod is connected securely.
- Make sure the door locks/unlocks and opens/closes properly.
