Inside Handle Replacement

  1. Remove the rear door trim.
  2. After loosening the mounting screws, then remove the inside handle (A).

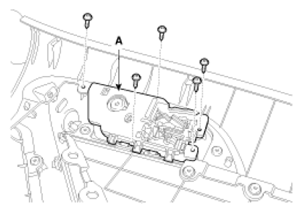

    Fig 1: Identifying Inside Handle Mounting Screws
    G07359474Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
    NOTE:
    • Make sure the door locks/unlocks and opens/closes properly.
