Home >> Hyundai >> 2011 >> Sonata GLS, Automatic >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Exterior Body Panels - Except HEV >> Rear Door >> Components And Components Location >> Components

Components And Components Location: Components

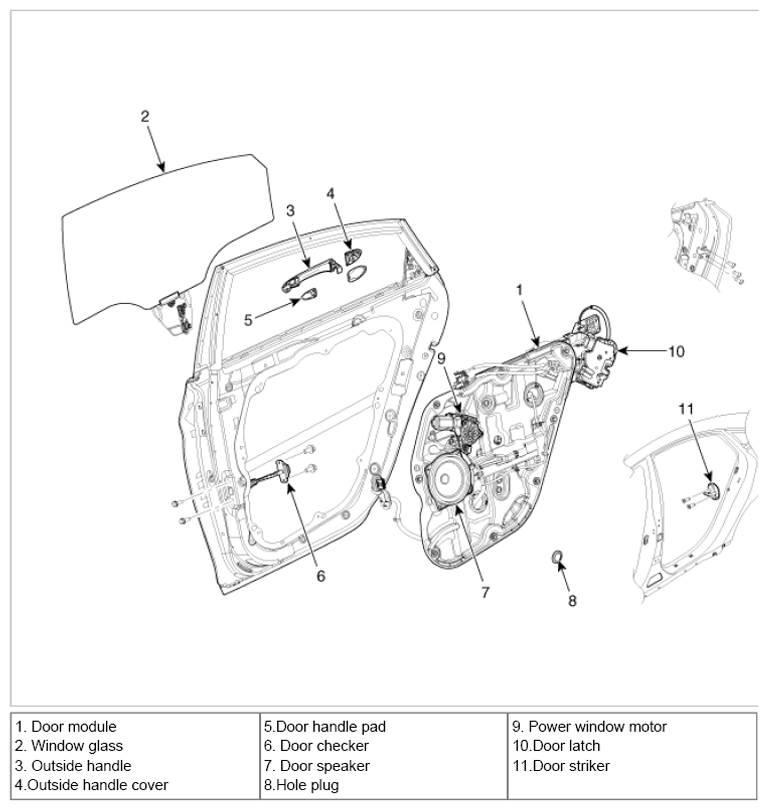

Fig 1: Exploded View Of Rear Door

G07359468

Courtesy of HYUNDAI MOTOR CO.
