Hood Lift Replacement

  1. Using a screwdriver (A), lift the socket clips (B) up slightly on both ends of the lifter (D), and then remove the lifter from the bracket (C).

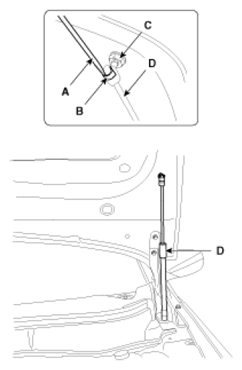

    Fig 1: Lifting Socket Clips Up On Both Ends Of Lifter Using Screwdriver
    G07359428Courtesy of HYUNDAI MOTOR CO.
  2. Installation is the reverse of removal.
