Adjust Hood

  1. After loosening the hinge (A) mounting bolt, adjust the hood (B) by moving it up or down, or right or left.
  2. Adjust the hood height by turning the hood over slam bumpers (C).
  3. After loosening the hood latch (D) mounting bolts, adjust the latch by moving it up or down, or right or left.

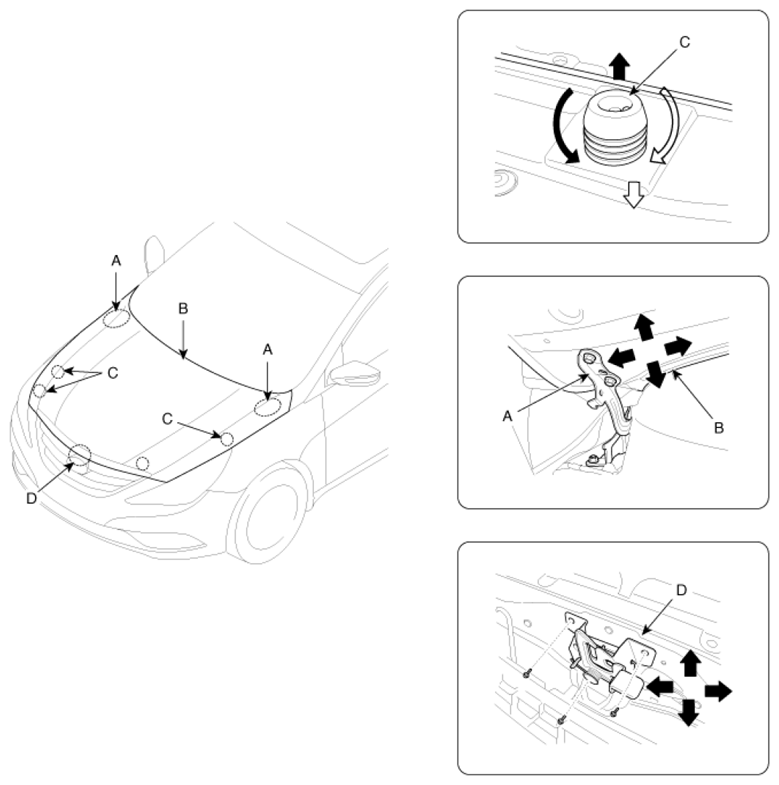

    Fig 1: Adjusting Latch
    G07359435Courtesy of HYUNDAI MOTOR CO.
