Repair Procedures: Replacement

  1. Remove the fuel fill door cap (A).
    Fig 1: Identifying Fuel Fill Door Cap
    G07359444Courtesy of HYUNDAI MOTOR CO.
  2. After loosening the mounting screws, then remove the fuel fill door catch packing (B).
    Fig 2: Identifying Fuel Fill Door Catch Packing
    G07359445Courtesy of HYUNDAI MOTOR CO.
  3. Detach the clips (A), then remove the fuel fill door (B).
    NOTE:
    • Replace fuel fill door housing (C) with new one.

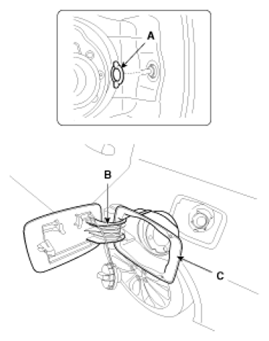

      Fig 3: Identifying Clips, Fuel Fill Door And Fuel Fill Door Housing
      G07359446Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the fuel fill door locks/unlocks and opens/closes properly.
