Inside Handle Replacement

  1. Remove the front door trim
  2. After loosening the mounting screws, then remove the inside handle (A).

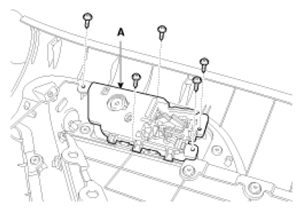

    Fig 1: Identifying Inside Handle
    G07359453Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
