Side Sill Garnish Replacement

NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damaged.
  • Put on gloves to protect your hands.
  • Take care not to scratch the body surface.
  1. Loosen the mounting screws.
  2. Using a screwdriver or remover, remove the side sill garnish (A).
  3. Installation is the reverse of removal.
    NOTE:
    • Replace any damage clips

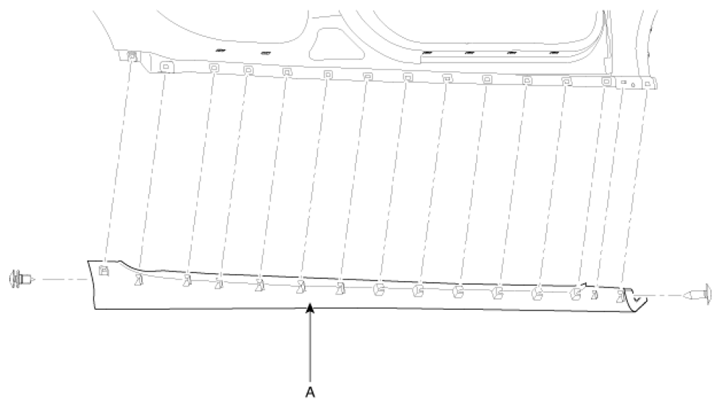

      Fig 1: Identifying Side Sill Garnish
      G07359494Courtesy of HYUNDAI MOTOR CO.
