First Seat Heater

Check for continuity and measure the resistance between terminals.
[Cushion]

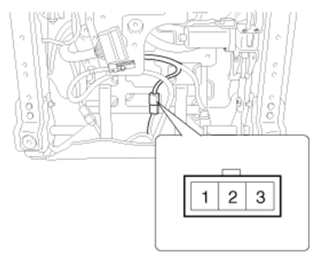

Fig 1: Identifying First Seat Heater Connector Terminals (Heater)
Courtesy of HYUNDAI MOTOR CO.

[Back]

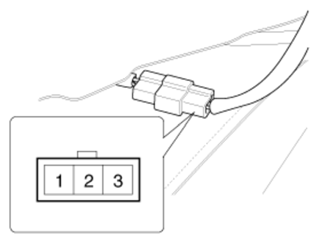

Fig 2: Identifying First Seat Heater Connector Terminals (Back)
Courtesy of HYUNDAI MOTOR CO.

Standard value (Fabric/Leather)

Cushion : 4.77 Ω ± 10%

Back 4.30 Ω ± 10%/4.13 Ω ± 10%

Set : 9.07 Ω ± 10%/8.9 Ω ± 10%
Operate the seat heater after connecting the connector, and then check the thermostat by measuring the temperature of seat surface.
Standard value (Fabric/Leather)

Cushion : 40 ± 2°C (104 ± 35.6°F)

Back : 46 ± 2°C (114.8 ± 35.6°F)
Check for continuity between the terminals after disconnecting the connector.

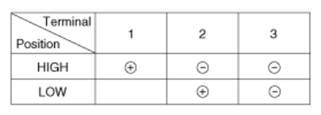

Fig 3: First Seat Heater Terminal Continuity Chart
